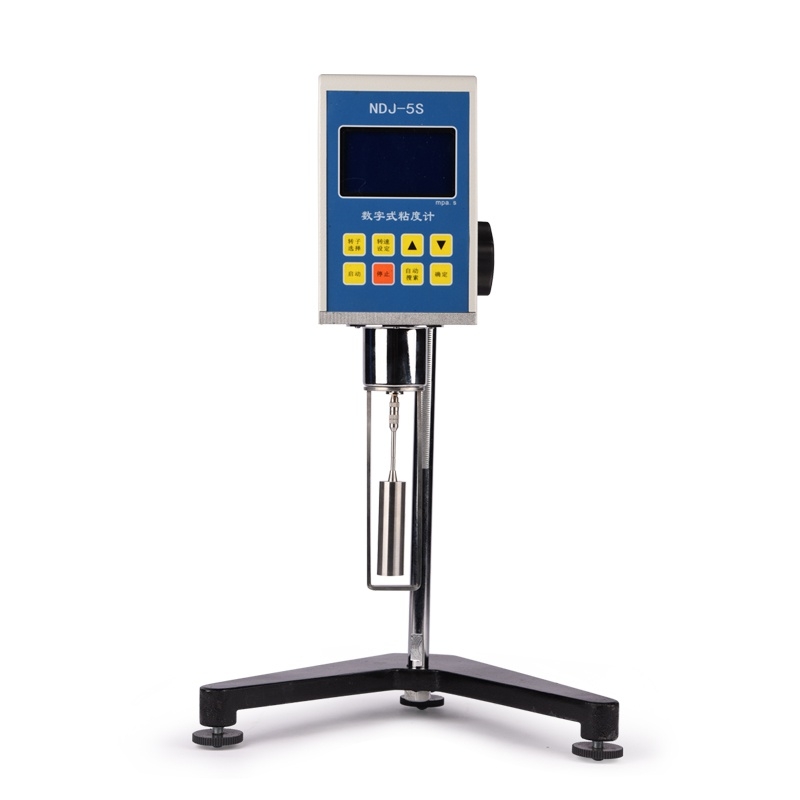

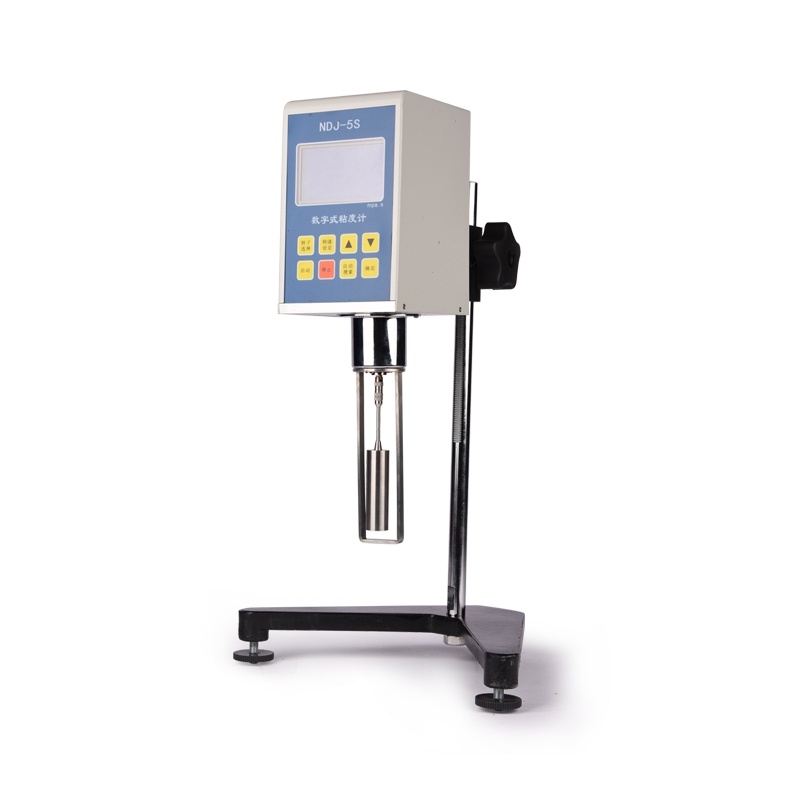

Coating viscosity instrument

Keywords：

Lost Foam casting process
Coating
Viscosity

1. Description
Controlled by single chip microcomputer, it is an intelligent instrument with data acquisition, processing and display Instrument according to the set speed control stepper motor accurate and stable operation, and throug the hairspring drive rotor rotation. When there is no resistance to the rotor, the rotor and the motor rotate synchronously; When the rotor is subjected to the measured liquid resistance, the rotor rotation will lag behind the motor. When the tension of the gossamer and the liquid resistance reach equilibrium, the rotor lag behind the motor Angle is fixed. By measuring the tension Angle, according to the set speed and rotor, the instrument calculates the liquid viscosity and display on the LCD screen.

2. Advantage
（1） The instrument is easy to operate, stable speed, high measuring accuracy, wide working voltage range (110V-220V，50HZ-60HZ);
（2） It has automatic search function, it can search for the best rotor and speed required for the measurement of unknown samples.

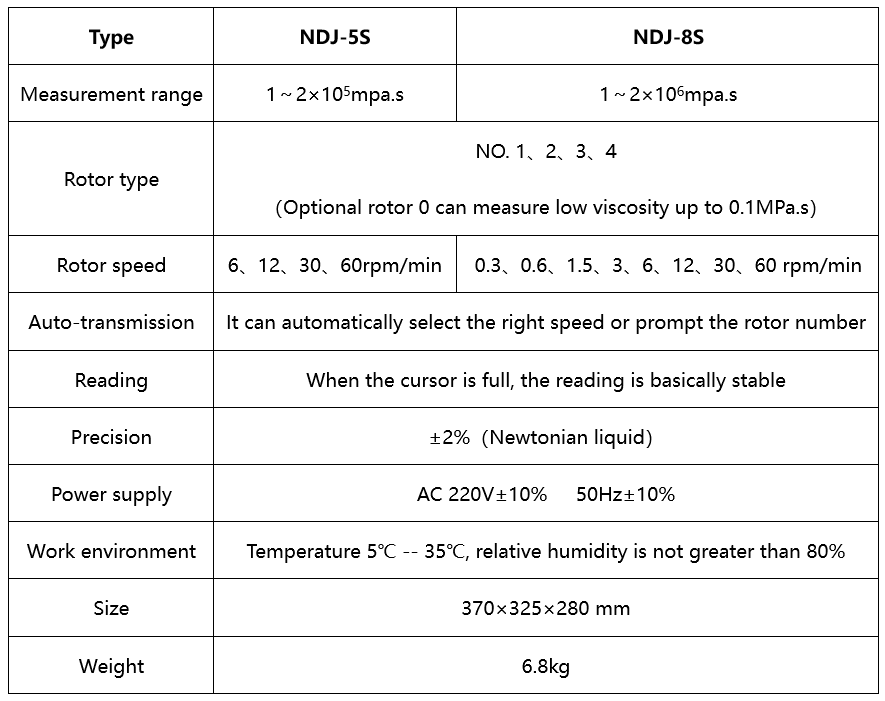

3. Parameter
