1.      Description
ZTY Permeability Meter is used to determine the permeability of clay and resin sand in dry and wet state. The meter includes electronic pneumatic regulator, automatic switching specimen bed, high precision micro pressure sensor, micro processing controller and printing system. It can automatically complete the air permeability test, display and printing.

2.       Advantage
（1）  The instrument is simple and easy to operate, the field staff can also easily use;
（2）  The test speed is fast, a test cycle time only needs 3-5mins;
（3）  Test results can be printed directly, easy to archive and save;
（4）  The equipment is stable, long life, is the best choice of online inspection.

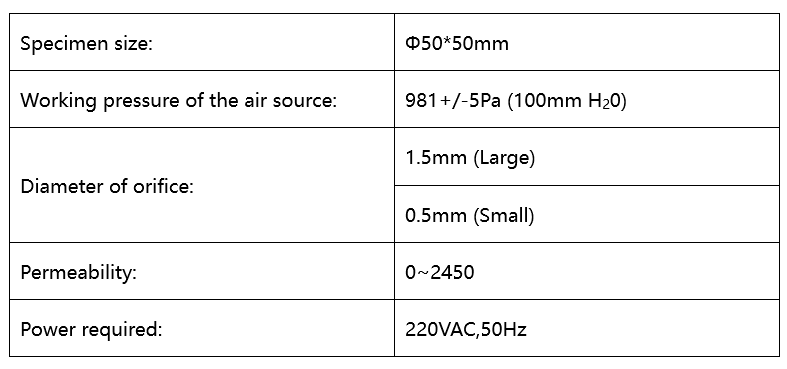

3.      Parameter

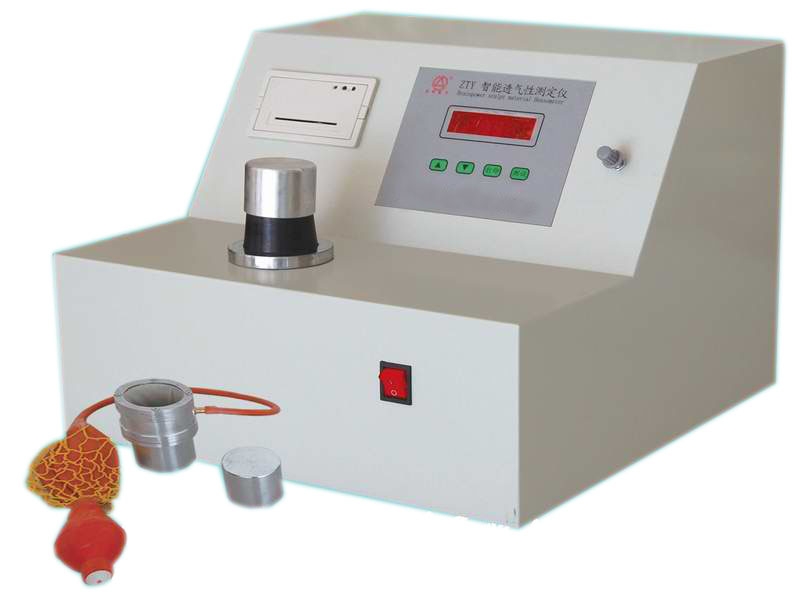

4.      Picture/Component

5.      More detail

（1）  Please preheat the machine for ten minutes before testing.

（2）  In the event of an accident, please turn off the power first.

（3）  The interval between each test is at least 8 seconds.

（4）  Motor continuous operation time shall not exceed 15 minutes.

（5）  The meter shall be calibrated regularly, and if the error exceeds the prescribed range, the meter should be sent back to the factory for repair.
