1.      Introduction

Nowadays manually assemble process with cold glue is the most popular way in China for small amount of batch in lost foam casting industry. But automatic gluing machine will be more efficiency if you face with big amount of batch production. So we develop this type of automatic gluing machine .

 It will through programming to record the route, through the air intake to adjust the quality of the glue line, to implement the automatic operation of the glue.

2.      Advantage

(1) It is very easy to operate. Regular bonding operations could be started with four buttons on Control Box. And coding is very easy, people without coding skills or even basic computer skills can be trained to work independently in one or two days.

(2)  All the products are totally the same and of good quality. To reduce the influences of personals on the product quality and productivity. A worker can operate two machines. Therefore, this machine successfully improved product quality and efficiency and slashed the costs of manufacturing.

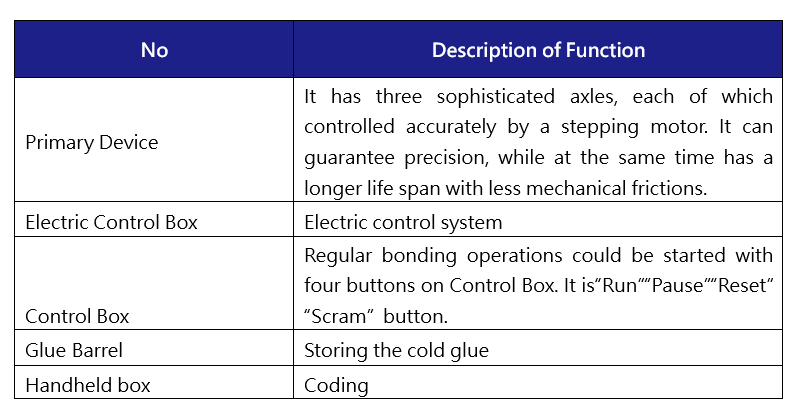

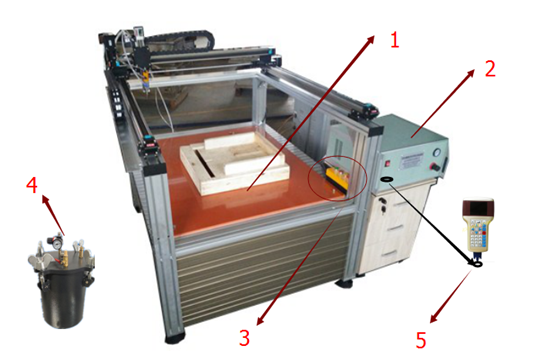

3.      Unit information

4.      Method

 (1)      Coding: A product corresponding to a program. As long as the glue head walked along the bonding line, the machine will automatically record the glue line,and then automatically generate the program. And it is very easy for us, people without coding skills or even basic computer skills can be trained to work independently in one or two days.

(2)      Adjust the glue joints：Using different aperture of the glue needle or change the air pressure inside the glue barrels. The glue joints should contain as little glue as possible.

(3)      Batch production：In the actual production process ，regular bonding operations could be started with four button on Control Box.“Run”“Pause”“Reset”“Scram”.
